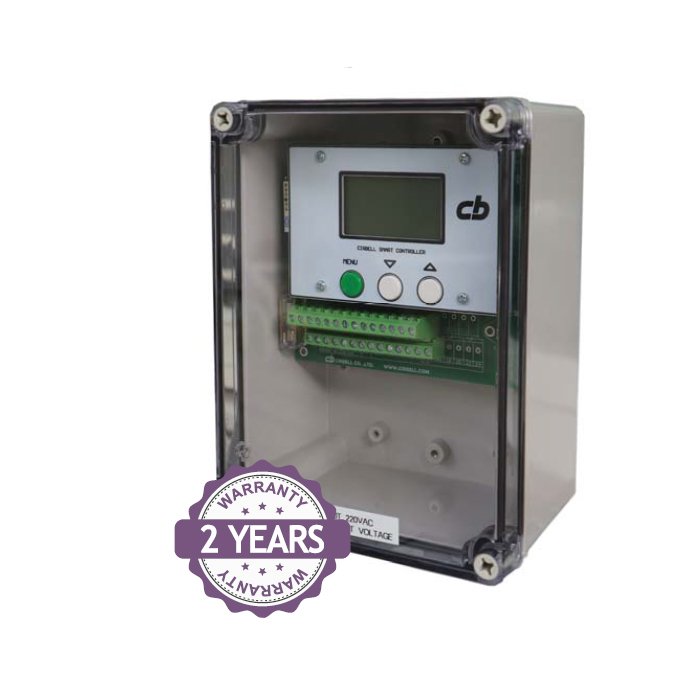

CB-STD-8-24M ตั้งเวลาของระบบ Dust Collector Pulse Jet Valves

CB-STD-8-24M control unit sequencer 8-24 output channels

Sequencer for controlling the pneumatic cleaning of industrial
dust collector systems
Advance Method, state-of-the-art performances: advanced
functions to manage the cleaning cycle, large number of
parameters andmanagement via serial line. Economisers in
the STD SOLUTION range are digital sequential timers switches
and are able to control from 8 to 24 solenoid valve srespectively.
In all versions there is a display that can display the most
important features and it is possible to programme the various and
customizable internal parameters with the 3 buttons on the panel.
The states and functions are displayed by the lighting of LCD on
the front panel of the instrument.
The controllers with AC power supply are able to control both
electronic valves 230VAC and 24VDC.

TECHNICAL SPECIFICATIONS

Power supply voltage 230 Vac 50-60 Hz ± 10 % [24 Vdc (Optional)]
Output voltage for solenoid valves 230 Vac 50-60 Hz
24 Vdc (Optional)
Inputs Remote enabling [Terminal CONTROL IN ] Option
Post-cleaning cycles fan switch. (Terminal [FAN])
Solenoid valves output Channels
Electric consumption 28 Watts at maximum load
Alarm Relays 1 Point normally open
Maximum load: 3A @ 250Vac,
2A @ 24Vdc,
Screen LCD display
5 x 20 mm glass fuse 230 Vac 1 x 2 A
24 Vdc 1 x 2 A
Operating temperature -10 °C - 55 °C
Casing Base in ABSLid in Polycarbonate

FUNCTION MENU

1. Operation MODE (ON/OFF)              1. การทำงานของระบบ (ปิด/เปิด)

3. Pulse Time                                          3. ระยะเปิดวาล์ว (การยกของแผ่นไดอะแฟรมวาล์ว)
4. Set number of valve outputs        4. เลือกจำนวนวาล์วที่ใช้งาน
5. Interval time between valves.        5. ระยะห่างระหว่างการยิงวาล์ว
11. After fan stop (Enable / Disable) 11. ทำความสะอาดหลังถุงกรองหลังหยุดพัดลม (ใช้/ไม่ใช้)
11.1. Cycles After fan stop (Cycles)    11.1 จำนวนรอบที่ทำความสะอาดหลังพัดลมหยุด
12. Manual activation valve                12. ทดสอบการยิงลมของวาล์วแต่ละตัว


no.	รายละเอียด	file type
1	CB-STD-8-24M control unit sequencer 8-24 output channels
